Name: iTEMP HART TMT142
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

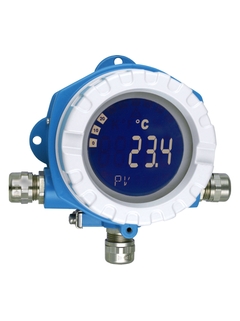

Product picture Temperature field transmitter TMT142 with HART® communication — Aluminum field housing with backlit display

Aluminum field housing with backlit display

Predecessor

Temperature indicator RIT261

Successor

F

L

E

X

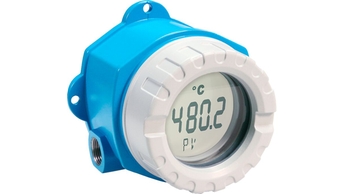

iTEMP TMT142B

HART® temperature field transmitter with one universal sensor input suitable for use in hazardous areas and with Bluetooth® communication
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Input

1 x RTD, TC, Ohm, mV
Output

1 x analog 4...20 mA
Auxiliary power supply

10,5...40 V DC (standard-version)
10,5...30 V DC (Ex-version)
Communication

HART-protocol
Installation

in field
Accuracy

(Pt100, -50...200 °C) <=0,15 K
(Pt100, -58...392 °F) <=0,3 °F
Galvanic isolation

yes
Certification

UL rec. Comp
ATEX II1G Ex ia IIC T6
ATEX II2G Ex d IIC T6
ATEX II3G Ex nA IIC T6
ATEX IECEx II2D Ex tb IIIC Db
ATEX II1G Ex ia IIC T6, II2D Ex ia IIIC
FM IS, NI I/1+2/A-D
CSA IS, NI I/1+2/A-D
FM XP, NI, DIP I,II,III/1+2/A-G
CSA XP, NI, DIP I,II,III/1+2/A-G
CSA General Purpose
IECEx Ex ia IIC T6 Ga
IECEx Ex d IIC T6 Gb
NEPSI Ex ia IIC T4-T6
NEPSI Ex nA II T4-T6
NEPSI Ex d IIC T4-T6
EAC Ex ia IIC T6 Ga
EAC Ex d IIC T6 Gb
TIIS Ex ia IIC T4
TIIS Ex ia IIC T6
TIIS Ex d IIC T6

Filter

Search downloads by serial number

Configure to download the CAD drawings of this product

Configure

66 documents

Technical Information (TI)

iTEMP TMT142B

Technical Information (TI)

English version - 01/2021

New version available in English

Temperature field transmitter
with HART® protocol

Select other languages, versions and see details Hide selection and details

	EN
22/01/2021
10/06/2020
21/06/2012
31/01/2007
07/02/2005

Language:	English
Version:	22/01/2021
File size:	1.7 MB
File name:	TI00107REN_1621.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

Operating Manuals ReadWin 2000 (GB)

Operating Instruction (BA)

English version - 01/2010

New version available in English

Operating Manuals ReadWin 2000

Select other languages, versions and see details Hide selection and details

	EN
01/01/2010
31/10/2008
20/06/2007
25/07/2001

Language:	English
Version:	01/01/2010
File size:	6.3 MB
File name:	BA137Ren_0110.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

ReadWin® Quick Setup

Operating Instruction (BA)

English version - 02/2005

New version available in English

Operating Manual
ReadWin® Quick Setup Temperature
PC Software

Select other languages, versions and see details Hide selection and details

	EN
02/02/2005

Language:	English
Version:	02/02/2005
File size:	883.5 KB
File name:	Ba213ra2.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

BA iTEMP TMT142B

Operating Instruction (BA)

English version - 01/2023

New version available in English

Temperature transmitter
with HART<sup>®</sup> protocol

Select other languages, versions and see details Hide selection and details

	EN
31/01/2023
07/06/2021
25/06/2020
17/02/2020
15/12/2006

Language:	English
Version:	31/01/2023
File size:	4.1 MB
File name:	BA00191REN_1623-00.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

KA iTEMP TMT142B

Short Instruction (KA)

English version - 01/2023

New version available in English

Temperature transmitter

Select other languages, versions and see details Hide selection and details

	EN
31/01/2023
20/07/2020
05/05/2020
22/04/2015
01/02/2009

Language:	English
Version:	31/01/2023
File size:	1.7 MB
File name:	KA00222REN_1623-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

iTEMP TMT162

Ex Safety Instruction (XA)

English version - 04/2022

New version available in English

PROFIBUS® PA, FOUNDATION Fieldbus™
ATEX: II1G Ex ia IIC Ga,II2D Ex ia IIIC Db
IECEx: Ex ia IIC Ga, Ex ia IIIC Db

Safety instructions for electricalapparatus in explosion-hazardous
areas

Select other languages, versions and see details Hide selection and details

	EN
25/04/2022
16/04/2018
29/09/2016
18/04/2013
19/07/2006

Language:	English
Version:	25/04/2022
File size:	444.7 KB
File name:	XA00065REN_1622-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

iTEMP TMT142, TMT142B

Ex Safety Instruction (XA)

English version - 08/2022

New version available in English

HART®
Ex ia IIC T4~T6 Ga/Gb

Select other languages, versions and see details Hide selection and details

	EN
22/08/2022

Language:	English
Version:	22/08/2022
File size:	808.4 KB
File name:	XA02912TEN_0122-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

iTEMP TMT142, TMT162

Ex Safety Instruction (XA)

English version - 08/2022

New version available in English

HART®, PROFIBUS® PA, FOUNDATION Fieldbus™
Ex d IIC T4~T6 Gb

Select other languages, versions and see details Hide selection and details

	EN
22/08/2022

Language:	English
Version:	22/08/2022
File size:	587.1 KB
File name:	XA02909TEN_0122-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

iTEMP TMT142

Ex Safety Instruction (XA)

English version - 08/2017

New version available in English

ATEX IEC Installation types
II2G Ex d IIC T6…T4 Gb
II1G Ex ia IIC T6…T4 Ga
Safety instructions

Select other languages, versions and see details Hide selection and details

	EN
01/08/2017
04/08/2011

Language:	English
Version:	01/08/2017
File size:	45.3 KB
File name:	XA01021REN_0217.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA iTEMP TMT162

Ex Safety Instruction (XA)

English version - 07/2024

New version available in English

HART®, PROFIBUS® PA, FOUNDATION Fieldbus™
1Ex db IIC T6...T4 Gb X
Ex tb IIIC T110 °C Db X

Select other languages, versions and see details Hide selection and details

	EN
10/07/2024
23/03/2020
31/05/2016

Language:	English
Version:	10/07/2024
File size:	1.3 MB
File name:	XA01453TEN_0324-00.pdf

Share
- Copy Link
- Send Mail
Download

Loading more results

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Cover latch spares kit field housing

Terminal module

Drawing number

Order code

7

51004948
O-Ring 88x3 EPDM 70 PTFE-coated

further parts

Drawing number

Order code

6

71158816
Housing TMT142G

Housing/housing accessories

Drawing number

Order code

1

TMT142G-
Electronic TMT142E

Display

Drawing number

Order code

4

TMT142E-
Adapter NPT1/2/M20x1.5 cable entry

Drawing number

Order code

8

51004387
Cable entry M20x1.5

Drawing number

Order code

8

51004949
Cable gland NPT1/2, D4.5-8.5 IP68

Drawing number

Order code

8

51006845
Adapter M20x1.5 exter./M24x1.5 intern.VA

Drawing number

Order code

8

51004915
Blanks (blind) M20x1.5 EEx-d/XP

Drawing number

Order code

9

51004489
Blanks (blind) NPT1/2, 3.1655.53

Drawing number

Order code

9

51004490
Blanks (blind) G1/2" Ex-d/XP

Drawing number

Order code

9

51004916
Blanks (blind) NPT1/2 V4A

Drawing number

Order code

9

51006888
Accessories System Products
