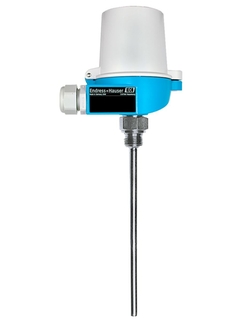

Name: RTD Thermometer TR11
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Predecessor

TST210

Successor

F

L

E

X
iTHERM ModuLine TM131

Metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-
F

L

E

X
iTHERM TM121

Fundamental metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

metric style
modular temperature assembly
universal range of application
suitable for hazardous areas
threaded process connection
without neck
incl. thermowell / protection tube (metal)
can be used with StrongSens insert
Thermowell / protection tube

welded protection tube
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

8,0 mm (0,31")
9,0 mm (0,35'')
11,0 mm (0,43'')
12,0 mm (0,47'')
14,0 mm (0,55")
15,0 mm (0,59")
Max. immersion length on request

up to 10.000,00 mm (393,70'')
Material protection tube/ thermowell

1.4401 (316)
1.4404 (316L)
1.4571 (316Ti)
Optional coating

Not defined
Process connection

male thread:
G3/8"
G1/2"
G3/4"
NPT1/2"
NPT3/4"
M20x1.5
Tip shape

straight
reduced
tapered
Surface roughness Ra

Not defined
Operating temperature range

PT100 TF StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Max. process pressure (static)

at 20 °C: 75 bar (1088 psi)
Accuracy

class A acc. to IEC 60751
class AA acc. to IEC 60751
Response time

depending on configuration
Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals

ATEX II1D Ex ia IIIC, II1G Ex ia IIC T6
ATEX II1/2D Ex ia IIIC,II1G Ex ia IIC T6
ATEX IECEx II1/2D Ex ta/tb IIIC Da/Db
ATEX II1G Ex ia IIC T6
ATEX II 3 G Ex nA IIC T6, II3D
NEPSI Ex ia IIC T6, Ex iaD 20 T85-T450
IECEx Ex ia IIC T6 Ga/Gb
EAC Ex ia IIC T6 Ga + DIP
NEPSI Ex nA IIC T6
Certification

Gost Metrology
SIL (transmitter only)
Marine approval

Filter

39 documents

Technical Information (TI)

TR11 Omnigrad M

Technical Information (TI)

English version - 06/2019

New version available in English

Modular RTD assembly -
protection tube, thread connection

Select other languages, versions and see details Hide selection and details

	EN
05/06/2019
01/03/2010
01/08/2008
01/04/2008
01/07/2002

Language:	English
Version:	05/06/2019
File size:	1.3 MB
File name:	TI00257TEN_1319.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x

Ex Safety Instruction (XA)

English version - 03/2023

New version available in English

RTD/TC thermometers
ATEX/IECEx:
Ex ia IIC T6 Ga
Ex ia IIC T6 Ga/Gb
Ex ia IIIC Txxx °C Da
Ex ia IIIC Txxx °C Db

Select other languages, versions and see details Hide selection and details

	EN
28/03/2023
20/12/2021
03/05/2016
28/11/2012
01/06/2009

Language:	English
Version:	28/03/2023
File size:	450.8 KB
File name:	XA00072REN_1623-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

TR10, TR11, TR12, TR13, TC10, TC12, TC13

Ex Safety Instruction (XA)

English version - 05/2022

New version available in English

Modular RTD/TC assemblies
ATEX: II 1/2D Ex ta/tb IIIC T85 °C...T450 °C Da/Db
IECEx: Ex ta/tb IIIC T85 °C...T450 °C Da/Db

Safety instructions for electrical apparatus in explosion-hazardous
areas

Select other languages, versions and see details Hide selection and details

	EN
09/05/2022
07/05/2018
20/10/2016
25/10/2012

Language:	English
Version:	09/05/2022
File size:	422.6 KB
File name:	XA01057TEN_0422-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA iTHERM TM211, TPx100, TSx310

Ex Safety Instruction (XA)

English version - 03/2023

New version available in English

RTD/TC inserts and cable thermometers
ATEX/IECEx:
Ex ia IIC T6 Ga
Ex ia IIC T6 Ga/Gb
Ex ia IIIC Txxx °C Da

Select other languages, versions and see details Hide selection and details

	EN
30/03/2023
18/07/2022
10/07/2019
28/11/2016
28/11/2012

Language:	English
Version:	30/03/2023
File size:	456.3 KB
File name:	XA00100REN_1823-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA TR1x, Tx88, TSx310, Tx6x, TC1x, TPx100, TM411, TR24

Ex Safety Instruction (XA)

English version - 08/2023

New version available in English

Thermometers and inserts
Ex ia IIC T1...T6 Ga
Ex ia IIIC T<sub>200</sub> 85 °C...T<sub>200
</sub> 450 °C Da

Select other languages, versions and see details Hide selection and details

	EN
30/08/2023
15/05/2023
31/07/2020

Language:	English
Version:	30/08/2023
File size:	474.5 KB
File name:	XA02109TEN_0323-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA TRxx, TCxx

Ex Safety Instruction (XA)

English version - 07/2024

New version available in English

RTD/TC thermometers
Ga/Gb Ех ia IIC T6…T1 Х
Ех ia IIIC T85 °C…T450 °C Da/Db Х

Select other languages, versions and see details Hide selection and details

	EN
17/07/2024
10/03/2020
02/11/2016

Language:	English
Version:	17/07/2024
File size:	453.6 KB
File name:	XA01459TEN_0324-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA TRxx, TCxx, TEC420, TS111, TM211, TM41x, TPx100, TSx310, TM1xx

Ex Safety Instruction (XA)

English version - 11/2023

New version available in English

RTD/TC thermometers
ATEX:
Ex nA IIC T6 Gc
Ex ec IIC Txxx°C Gc
Ex tc IIIC Txxx°C Dc

Select other languages, versions and see details Hide selection and details

	EN
20/11/2023
13/12/2022
14/03/2022
23/05/2019
04/08/2017

Language:	English
Version:	20/11/2023
File size:	452.6 KB
File name:	XA00044REN_2023-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411, TM412

Ex Safety Instruction (XA)

English version - 07/2020

New version available in English

Thermometers and inserts
Ex nA IIC T6...T1 Gc

Select other languages, versions and see details Hide selection and details

	EN
31/07/2020

Language:	English
Version:	31/07/2020
File size:	173.5 KB
File name:	XA02111TEN_0120.pdf

Share
- Copy Link
- Send Mail
Download

Special Documentation (SD)

Device viewer

Special Documentation (SD)

English version - 07/2021

New version available in English

Technical documentation in other languages

Show details Hide details

Language:	English
Version:	14/07/2021
File size:	478.5 KB
File name:	SD02429R09EN_0121.pdf

Share
- Copy Link
- Send Mail
Download

Fields of Activities (FA)

Misura della temperatura

Fields of Activities (FA)

Italian version - 07/2024

New version available in English

Misura della temperatura
Termometri e trasmettitori per l'industria di processo

Show details Hide details

Language:	Italian
Version:	09/07/2024
File size:	20.3 MB
File name:	FA00006Tit_2223.pdf

Share
- Copy Link
- Send Mail
Download

Loading more results

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Cover F15 316L, gasket

further parts

Order code

52027000
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces

further parts

Order code

52028179
Cover F15, sight glass PC, 316L, gasket

further parts

Order code

52028207
Display LC for TA20J

further parts

Order code

60017971
Housing filter plastic F15, 3 pieces

further parts

Order code

71043745
Fixing kit cpl.TMT8x/7x (european)

further parts

Order code

71044061
Spare parts kit copper ring G1/2"

further parts

Order code

71367414
Spare parts kit copper ring G3/4"

further parts

Order code

71367420
Spare parts kit copper ring G1"

further parts

Order code

71367424
Spare parts kit copper ring M20x1.5

further parts

Order code

71367425
Spare parts kit ring D21/di 10xgreen

further parts

Order code

71367427
Connector 4p M20/M12 150mm

further parts

Order code

71313382
Spare parts kit O-ring TA20R

further parts

Order code

71586415
Insert TPR100

Sensoric

Drawing number

Order code

A

TPR100-
iTHERM Insert TS111

Sensoric

Drawing number

Order code

A

TS111-
Thermowell TW11

Assembly/armature

Drawing number

Order code

E

TW11-
Terminal Head TA20A

Housing/housing accessories

Drawing number

Order code

D

TA20A-
Terminal Head TA20B

Housing/housing accessories

Drawing number

Order code

D

TA20B-
Terminal Head TA21E

Housing/housing accessories

Drawing number

Order code

D

TA21E-
iTEMP TMT84, Transmitter PA

Electronic (sensor)

Drawing number

Order code

B

TMT84-
iTEMP TMT85, Transmitter FF

Electronic (sensor)

Drawing number

Order code

B

TMT85-
Display Unit Head Transmitter

Electronic (sensor)

Drawing number

Order code

B

TID10-
Readwin 2000 Operation + Read. software

further parts

Order code

READWIN-
Terminal Head TA30A

Housing/housing accessories

Drawing number

Order code

D

TA30A-
Terminal Head TA30D

Housing/housing accessories

Drawing number

Order code

D

TA30D-
Terminal Head TA30P

Housing/housing accessories

Drawing number

Order code

D

TA30P-
iTEMP TMT82, Transmitter HART

Electronic (sensor)

Drawing number

Order code

B

TMT82-
Commubox FXA195

further parts

Order code

FXA195-
Spare RFID TAG

further parts

Order code

XPRFID-
iTHERM ModuLine TM131

further parts

Order code

TM131-
Thermo-conductive paste FDA-conform 30g

Order code

71249291
Thermoconductive Paste HSC 340, 100g

Order code

71312729
Term.block DIN B (42mm) 3 term. 5 pc

Drawing number

Order code

C

71111513
Term.block DIN B (42mm) 4 term. 5 pc

Drawing number

Order code

C

71111514
Term.block DIN B (42mm) 6 term. 5 pc

Drawing number

Order code

C

71111515
Configuration Kit TXU10

Order code

TXU10-
Service

Order code

DIENST-

RTD Thermometer TR11

Predecessor

Successor

iTHERM ModuLine TM131

iTHERM TM121

Characteristic / Application

Thermowell / protection tube

Insert / probe

Outer diameter protection tube / Insert

Max. immersion length on request

Material protection tube/ thermowell

Optional coating

Process connection

Tip shape

Surface roughness Ra

Operating temperature range

Max. process pressure (static)

Accuracy

Response time

Integration head transmitter

Ex - approvals

Certification

Back

TR11 Omnigrad M

XA TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x

TR10, TR11, TR12, TR13, TC10, TC12, TC13

XA iTHERM TM211, TPx100, TSx310

XA TR1x, Tx88, TSx310, Tx6x, TC1x, TPx100, TM411, TR24

XA TRxx, TCxx

XA TRxx, TCxx, TEC420, TS111, TM211, TM41x, TPx100, TSx310, TM1xx

TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411, TM412

Device viewer

Misura della temperatura

Back

Cover F15 316L, gasket

Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces

Cover F15, sight glass PC, 316L, gasket

Display LC for TA20J

Housing filter plastic F15, 3 pieces

Fixing kit cpl.TMT8x/7x (european)

Spare parts kit copper ring G1/2"

Spare parts kit copper ring G3/4"

Spare parts kit copper ring G1"

Spare parts kit copper ring M20x1.5

Spare parts kit ring D21/di 10xgreen

Connector 4p M20/M12 150mm

Spare parts kit O-ring TA20R

Insert TPR100

iTHERM Insert TS111

Thermowell TW11

Terminal Head TA20A

Terminal Head TA20B

Terminal Head TA21E

iTEMP TMT84, Transmitter PA

iTEMP TMT85, Transmitter FF

Display Unit Head Transmitter

Readwin 2000 Operation + Read. software

Terminal Head TA30A

Terminal Head TA30D

Terminal Head TA30P

iTEMP TMT82, Transmitter HART

Commubox FXA195

Spare RFID TAG

iTHERM ModuLine TM131

Thermo-conductive paste FDA-conform 30g

Thermoconductive Paste HSC 340, 100g

Term.block DIN B (42mm) 3 term. 5 pc

Term.block DIN B (42mm) 4 term. 5 pc

Term.block DIN B (42mm) 6 term. 5 pc

Configuration Kit TXU10

Service

We value your privacy
