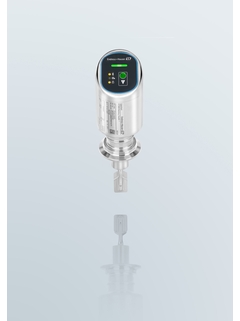

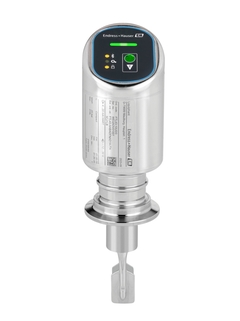

Liquiphant FTL43 – product picture

Liquiphant FTL43 – hygienic point level switch for liquids

Proven in the field, particularly compact and perfectly suitable for hygienic applications

FTL43
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Liquiphant FTL43, with LED, 316L housing, clamp
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquiphant FTL43, with LED, 316L housing, thread, extension tube
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquiphant FTL43, with LED, 316L housing, clamp
  • F
  • L
  • E
  • X
©Endress+Hauser
Heartbeat Technology IO-Link digital communication technology

Specs at a glance

  • Process temperature

    -40 °C...+150 °C
    (-40 °F...+302 °F)

  • Process pressure / max. overpressure limit

    Vacuum...64 bar
    (Vacuum...928 psi)

  • Min. density of medium

    0.5 g/cm³ (25.0 lb/ft3)
    (0.4 g/cm³ (31.2 lb/ft3) optional)

Field of application

The Liquiphant FTL43 is a point level switch for liquids and part of the Compact Line. The product line is especially developed for hygienic applications and combines compact design with full performance. The proven vibronic technology works reliably in all pumpable liquids, without media adjustment. The Liquiphant FTL43 is distinguished by its ease of use with plug & play functionality and a wide range of digital communication options.

Liquiphant FTL43 is used for point level detection in process and storage tanks as well as in pipelines.

Liquiphant FTL43 covers a wide range of hygienic applications:

  • Level detection in narrow skids and modules for various liquids

  • Pump dry run protection in pipes

  • Overfill protection in process tanks

  • Detection of media with different densities

Benefits

  • Outstanding ease of use due to easy commissioning with plug & play functionality

  • Improved process and product safety through configuration integrity - a checksum algorithm (CRC) ensures that safety relevant parameters remain unchanged

  • Increased productivity thanks to traceable and documented on-demand verification without process interruption and continuous diagnostics with Heartbeat Technology

  • Documented compliance through certified hygienic design as well as proven material conformity and traceability

  • User-friendly operation with guided wizards and a wide range of digital communication options

Videos

  • Performance meets hygienic industry requirements: The Compact Line

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.

  • Digital Communication & Integration

    Seamless integration of our field devices into the automation systems of many manufacturers. Field device tests in vendor-independent environment. Support of open standards.

  • IO-Link digital communication technology
    IO-Link communication

    IO-Link communication helps to digitalize your plant

Lean selection

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

FLEX: Lean ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Loading alternative products

Could also interest you

  • eBrochure Compact Line eBrochure Compact Line

    Compact Line - Measuring devices for hygienic applications

    eBrochure Compact Line – No room for compromise in hygienic applications

  • Visual Compact Line Visual Compact Line

    Particularly small, exceptionally powerful: the Compact Line

    All the advantages of the Compact Line for hygienic applications in the Food & Beverage and Life Sciences industries.
