Prosonic FDU95 - Ultrasonic measurement

Ultrasonic measurement
Time-of-Flight
Prosonic FDU95

Ultrasonic sensor for level measurement for connection to FMU9x (measuring range up to 45m)

FDU95
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

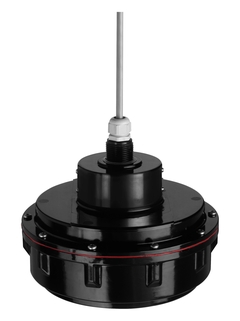

Prosonic FDU95
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    +/- 2mm + 0.17% of measured distance

  • Process temperature

    -40 °C ... 80 °C
    or 150 °C
    (-40 °F ... 176 °F
    or 302 °F)

  • Process pressure / max. overpressure limit

    0.7 bar...1.5 bar abs
    (10 psi...22 psi)

  • Max. measurement distance

    45 m (148 ft)

  • Main wetted parts

    UP (unsaturated polyester)

Field of application

The FDU95 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in solids 45m (148ft).

Sensor for continuous, non-contact level measurement of bulk materials in silos, on belts, stockpiles and in crushers. Typically used in measurements in low structural heights.

  • Process connection: Thread

  • Temperature: -40 to +80°C or +150°C (-40 to +176°F or +302°F)

  • Pressure: +0.7 to +1.5bar (+10 to +22psi)

  • Maximum measuring range: Solids 45m (148ft)

  • Blocking distance: 0.7m / 80°C (2.3ft), 0.9m / 150°C (2.9ft)

  • International explosion protection certificates

Benefits

  • Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present

  • Suited for rough ambient conditions thanks to separate installation from the transmitter
    (up to 300m)

  • Reduced build-up formation because of the self-cleaning effect

  • Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning

  • Weather resistant and flood-proof (IP 68)

  • Non-contact measurement method minimizes service requirements

  • International Dust-Ex and Gas-Ex certificates available

Videos

  • Time-of-Flight measuring principle
