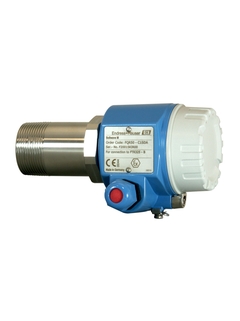

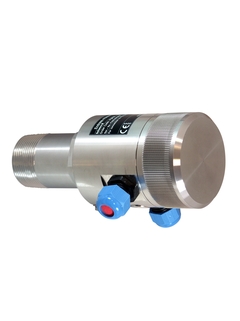

Name: Soliwave FQR50
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Successor

F

L

E

X

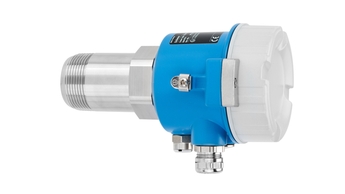

Soliwave FQR57

Transmitter for non-contact point level detection and bulk flow monitoring
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

Contactless measurement
Microwave transmitter
Supply / Communication

Transmitter
Ambient temperature

-20 °C ... 70 °C
(-4°F ... 158°F)
Process temperature

Waves emitted from outside (non-contact): any
Waves emitted within installation (contact):
-20 °C ... 70 °C
(-4°F ... 158 °F)
Process pressure / max. overpressure limit

Waves emitted from outside (contactless): any
Waves emitted within installation (contact):
0.8 bar abs ... 4.8 bar abs (12 psi ... 70 psi)
Min. density of medium

Solid weight: > 10 g/l
Main wetted parts

Within installation: Aluminium, PTFE
Or: non-contact
Process connection

1-1/2" G + NPT
or with waves emitted from outside / mounting from outside, walls of container must not be made of metal
Process connection hygienic

With waves emitted from outside
Communication

Transmitter: Relays, DPDT
Certificates / Approvals

ATEX, IEC Ex
Options

Flange
Components

Reciever: FDR50
Transmitter: FTR325
Successor

Soliwave FQR57
Application limits

When waves are emitted from outside (non-contact)
Solid weight: <10g/l

Filter

12 documents

Technical Information (TI)

Technical Information Soliwave FQR50 / FDR50

Technical Information (TI)

English version - 08/2016

New version available in English

Non-contact, non-wearing detection of bulk solids of all kinds

Select other languages, versions and see details Hide selection and details

	EN
19/08/2016
11/08/2014
28/07/2011
05/03/2009
04/08/2008

Language:	English
Version:	19/08/2016
File size:	1.2 MB
File name:	TI00378FEN_1516.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Operating instructions Soliwave FQR 50 / FDR 50

Short Instruction (KA)

English version - 08/2016

New version available in English

Microwave barrier

Select other languages, versions and see details Hide selection and details

	EN
19/08/2016
11/08/2014
28/07/2011
05/03/2009
04/08/2008

Language:	English
Version:	19/08/2016
File size:	1.6 MB
File name:	KA00206FA6_1516.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

Soliwave M FQR50, FDR50

Ex Safety Instruction (XA)

English version - 11/2007

New version available in English

Approval No.: DMT 03 ATEX E 053
ATEX II 1/2 D IP66 T 102°C

Select other languages, versions and see details Hide selection and details

	EN
01/11/2007

Language:	English
Version:	01/11/2007
File size:	484.8 KB
File name:	XA223FA3_1107.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

Soliwave M FQR50, FDR50

Ex Safety Instruction (XA)

English version - 09/2016

New version available in English

Approval No.: BVS 07 ATEX E 148 X
ATEX II 1/2 G
Protection: Ex ia IIC T4
ATEX II 1/2 D Ex iaD 20/21 IP66 T 98°C

Select other languages, versions and see details Hide selection and details

	EN
07/09/2016
29/07/2011
01/11/2007

Language:	English
Version:	07/09/2016
File size:	2.6 MB
File name:	XA00219FA3_1416.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

Soliwave M FQR50, FDR50 Nivotester FTR325

Ex Safety Instruction (XA)

English version - 08/2016

New version available in English

Approval No.: IECEx BVS 09.0007X
Zone 0/1 Ex ia IIC T4,
Ex iaD 20/21 IP66 T98°C
[Zone 0] [Ex ia] IIC,
[Ex iaD]

Select other languages, versions and see details Hide selection and details

	EN
19/08/2016
29/07/2011
05/03/2009
01/02/2009

Language:	English
Version:	19/08/2016
File size:	283.5 KB
File name:	XA00484FEN_1416.pdf

Share
- Copy Link
- Send Mail
Download

Fields of Activities (FA)

Catálogo Medición y Detección de nivel

Fields of Activities (FA)

Spanish version - 06/2022

New version available in English

Gama de productos para aplicaciones con líquidos y sólidos

Show details Hide details

Language:	Spanish
Version:	01/06/2022
File size:	7.2 MB
File name:	FA00001Fes Catalogo Nivel_24.22.pdf

Share
- Copy Link
- Send Mail
Download

Case Study (CS)

L’automatisation des process vaut son pesant d’or

Case Study (CS)

French version - 07/2016

New version available in English

Memosens Les sondes de pH améliorent les process chez Agnico Eagle

Show details Hide details

Language:	French
Version:	01/07/2016
File size:	673.1 KB
File name:	CS01496CFR-0216-Agnico Eagle.pdf

Share
- Copy Link
- Send Mail
Download

Case Study (CS)

Process automation worth its weight in gold

Case Study (CS)

English version - 07/2016

New version available in English

Memosens pH sensors improve processes at Agnico Eagle

Show details Hide details

Language:	English
Version:	01/07/2016
File size:	1.5 MB
File name:	CS01496CEN_0116_Agnico Eagle goldmine.pdf

Share
- Copy Link
- Send Mail
Download

Case Study (CS)

Prozessautomatisierung, die Gold wert ist

Case Study (CS)

German version - 07/2016

New version available in English

Memosens pH-Sensoren verbessern Prozesse bei Agnico Eagle

Show details Hide details

Language:	German
Version:	01/07/2016
File size:	1.5 MB
File name:	CS01496CDE_0116_Agnico Eagle Goldmine.pdf

Share
- Copy Link
- Send Mail
Download

Explosion Protection

Product family: Nivotester, Soliwave M

Explosion Protection

English version - 04/2009

New version available in English

Product root: FDR50-, FQR50-, FTR325-
Region: International, International (IECEx)
Approval agency: DEKRA EXAM

Show details Hide details

Language:	English
Version:	22/04/2009
File size:	379.5 KB
File name:	IECExBVS09_0007X.pdf

Share
- Copy Link
- Send Mail
Download

Loading more results

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Electronic insert Q-A, FQR50

further parts

Drawing number

Order code

1

52022363
Electronic insert Q-B, FQR50

further parts

Drawing number

Order code

1

52022364
Electronic insert Q-C, FQR50

further parts

Drawing number

Order code

1

71062110
Electronic insert Q-D, FQR50

further parts

Drawing number

Order code

1

71062113
Sightglass disc DN50, 25bar, 200oC

further parts

Order code

71209101
Sightglass disc DN50, 10bar, 200oC

further parts

Order code

71209114
Sightglass disc DN80, 200oC

further parts

Order code

71209116
Sightglass disc DN50, 200oC

further parts

Order code

71209118
Sightglass disc DN50, 6bar, 200oC

further parts

Order code

71209122
Sightglass disc DN80, 25bar, 200oC

further parts

Order code

71209100
Sightglass disc DN80, 10bar, 200oC

further parts

Order code

71209111
Sightglass disc DN80, 6bar, 200oC

further parts

Order code

71209121
Sightglass disc DN100, 25bar, 200oC

further parts

Order code

71209097
Sightglass disc DN100, 10bar, 200oC

further parts

Order code

71209107
Sightglass disc DN100, 200oC

further parts

Order code

71209115
Sightglass disc DN100, 6bar, 200oC

further parts

Order code

71209119
Flange DN40 PN6, Rp1-1/2, Alu

Order code

71006345
Flange DN40 PN40, Rp1-1/2, 316Ti

Order code

71006348
Flange DN40 PN40, Rp1-1/2, 316Ti, 3.1

Order code

71108383
Flange DN50 PN16, Rp1-1/2, 316Ti

Order code

71006350
Flange DN50 PN16, Rp1-1/2, 316Ti, 3.1

Order code

71108388
Flange DN100 PN16, Rp1-1/2, 316Ti

Order code

71006352
Flange DN100 PN16, Rp1-1/2, 316Ti, 3.1

Order code

71108390
Flange 1-1/2" 150lbs, NPT1-1/2, Alu

Order code

71006346
Flange 1-1/2" Cl.150, NPT1-1/2, 316Ti

Order code

71006349
Flange 1-1/2" Cl.150,NPT1-1/2,316Ti,3.1

Order code

71108387
Flange NPS 2" Cl.150, NPT1-1/2, 316Ti

Order code

71006351
Flange 2" Cl.150, NPT1-1/2,316Ti, 3.1

Order code

71108389
Flange NPS 4" CL.150, NPT1-1/2, 316Ti

Order code

71006353
Flange 4" Cl.150, NPT1-1/2,316Ti, 3.1

Order code

71108391
Welded fitting DN50, 200oC

Order code

71026443
Welded fitting DN50, 10bar, 200oC

Order code

71026446
Welded fitting DN80, 200oC

Order code

71026444
Welded fitting DN80, 10bar, 200oC

Order code

71026447
Welded fitting DN100, 200oC

Order code

71026445
Welded fitting DN100, 10bar, 200oC

Order code

71026448
Flanged fitting DIN/EN DN50, 25bar,200oC

Order code

71026449
Flanged fitting DIN/EN DN80, 25bar,200oC

Order code

71026450
Flanged fitting DIN/EN DN100,25bar,200oC

Order code

71026451
HT-adapter R1-1/2 + Rp1-1/2, 316Ti

Order code

71113441
HT-adapter NPT1-1/2, 316Ti

Order code

71113449
Extension 225mm, HT-adapter R1-1/2 +

Order code

71113450
Extension 325mm, HT-adapter R1-1/2 +

Order code

71113451
Extension 525mm, HT-adapter R1-1/2 +

Order code

71113452
Extension 225mm, HT-Adapter NPT1-1/2

Order code

71113453
Extension 325mm, HT-adapter NPT1-1/2

Order code

71113454
Extension 525mm, HT-adapter NPT1-1/2

Order code

71113455
Mounting bracket FQR5x/FDR5x, Aluminium

Order code

52017501
Mounting bracket FQR5x/FDR5x, Plastics

Order code

52017502

Soliwave FQR50

Successor

Soliwave FQR57

Characteristic / Application

Supply / Communication

Ambient temperature

Process temperature

Process pressure / max. overpressure limit

Min. density of medium

Main wetted parts

Process connection

Process connection hygienic

Communication

Certificates / Approvals

Options

Components

Successor

Application limits

Back

Technical Information Soliwave FQR50 / FDR50

Operating instructions Soliwave FQR 50 / FDR 50

Soliwave M FQR50, FDR50

Soliwave M FQR50, FDR50

Soliwave M FQR50, FDR50 Nivotester FTR325

Catálogo Medición y Detección de nivel

L’automatisation des process vaut son pesant d’or

Process automation worth its weight in gold

Prozessautomatisierung, die Gold wert ist

Product family: Nivotester, Soliwave M

Back

Electronic insert Q-A, FQR50

Electronic insert Q-B, FQR50

Electronic insert Q-C, FQR50

Electronic insert Q-D, FQR50

Sightglass disc DN50, 25bar, 200oC

Sightglass disc DN50, 10bar, 200oC

Sightglass disc DN80, 200oC

Sightglass disc DN50, 200oC

Sightglass disc DN50, 6bar, 200oC

Sightglass disc DN80, 25bar, 200oC

Sightglass disc DN80, 10bar, 200oC

Sightglass disc DN80, 6bar, 200oC

Sightglass disc DN100, 25bar, 200oC

Sightglass disc DN100, 10bar, 200oC

Sightglass disc DN100, 200oC

Sightglass disc DN100, 6bar, 200oC

Flange DN40 PN6, Rp1-1/2, Alu

Flange DN40 PN40, Rp1-1/2, 316Ti

Flange DN40 PN40, Rp1-1/2, 316Ti, 3.1

Flange DN50 PN16, Rp1-1/2, 316Ti

Flange DN50 PN16, Rp1-1/2, 316Ti, 3.1

Flange DN100 PN16, Rp1-1/2, 316Ti

Flange DN100 PN16, Rp1-1/2, 316Ti, 3.1

Flange 1-1/2" 150lbs, NPT1-1/2, Alu

Flange 1-1/2" Cl.150, NPT1-1/2, 316Ti

Flange 1-1/2" Cl.150,NPT1-1/2,316Ti,3.1

Flange NPS 2" Cl.150, NPT1-1/2, 316Ti

Flange 2" Cl.150, NPT1-1/2,316Ti, 3.1

Flange NPS 4" CL.150, NPT1-1/2, 316Ti

Flange 4" Cl.150, NPT1-1/2,316Ti, 3.1

Welded fitting DN50, 200oC

Welded fitting DN50, 10bar, 200oC

Welded fitting DN80, 200oC

Welded fitting DN80, 10bar, 200oC

Welded fitting DN100, 200oC

Welded fitting DN100, 10bar, 200oC

Flanged fitting DIN/EN DN50, 25bar,200oC

Flanged fitting DIN/EN DN80, 25bar,200oC

Flanged fitting DIN/EN DN100,25bar,200oC

HT-adapter R1-1/2 + Rp1-1/2, 316Ti

HT-adapter NPT1-1/2, 316Ti

Extension 225mm, HT-adapter R1-1/2 +

Extension 325mm, HT-adapter R1-1/2 +

Extension 525mm, HT-adapter R1-1/2 +

Extension 225mm, HT-Adapter NPT1-1/2

Extension 325mm, HT-adapter NPT1-1/2

Extension 525mm, HT-adapter NPT1-1/2

Mounting bracket FQR5x/FDR5x, Aluminium

Mounting bracket FQR5x/FDR5x, Plastics

We value your privacy
