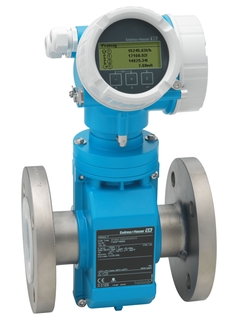

Electromagnetic flowmeter - Proline Promag P 200

Proline Promag P 200
electromagnetic flowmeter

The flowmeter for highest medium temperatures with genuine loop-powered technology

5P2B

Compare

Specs at a glance

Max. measurement error

Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)
Measuring range

4 dm3/min to 1100 m3/h (1 to 4850 gal/min)
Medium temperature range

Liner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
Max. process pressure

PN 40, Class 300, 20K
Wetted materials

Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum

See all specifications

Field of application

Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With genuine loop-powered technology, Promag P 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology enables process safety at all times.

The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures

Device properties

Nominal diameter: max. DN 200 (8")
All common Ex approvals
Liner made of PTFE or PFA
Loop-powered technology
Robust two-chamber housing
Plant safety: worldwide approvals (SIL, Haz. area)

Benefits

Versatile applications – wide variety of wetted materials
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Maintenance-free – no moving parts
Convenient device wiring – separate connection compartment
Safe operation – no need to open the device due to display with touch control, background lighting
Integrated verification – Heartbeat Technology
