Picture of electromagnetic flowmeter Proline Promag D 10: Cost-effective wafer flowmeter

Proline Promag D 10
electromagnetic flowmeter

Highly cost-effective wafer flowmeter with easy-to-use operation concept

5DBB
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Picture of electromagnetic flowmeter Proline Promag D 10: Cost-effective wafer flowmeter
  • F
  • L
  • E
  • X
©Endress+Hauser

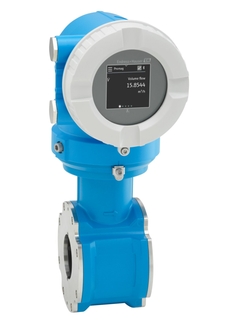

Proline Promag D 10 – highly cost-effective wafer flowmeter

Proline Promag D 10 – highly cost-effective wafer flowmeter

Heartbeat Technology

Specs at a glance

  • Max. measurement error

    Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

  • Measuring range

    9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min)

  • Medium temperature range

    Liner material polyamide: 0 to +60°C (+32 to +140°F)

  • Max. process pressure

    PN 16, Class 150, 10K

  • Wetted materials

    Liner material polyamide: 0 to +60°C (+32 to +140°F)
    Electrodes: 1.4435 (316L)

Field of application

The wafer flowmeter Promag D is designed for all basic water applications where space is at a minimum. With its straightforward hard- and software design, Promag D 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and compliant verification.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

  • For basic water applications; optimized for limited space and plastic pipe installations

Device properties

  • Short installation length and low weight

  • Integrated ground disks made of stainless steel

  • International drinking water approvals

  • System integration with HART, Modbus RS485

  • Flexible operation with app and optional display

Benefits

  • Easy, fast centering of the sensor – innovative housing construction

  • Energy-saving flow measurement – no pressure loss due to cross section constriction

  • Maintenance-free – no moving parts

  • Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen

  • Simple, time-saving commissioning – guided parameterization in advance and in the field

  • Integrated verification – Heartbeat Technology

Videos

  • Proline 10 – uncompromisingly simple

  • The Electromagnetic Flow Measuring Principle

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.

Lean selection

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

FLEX: Lean ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Loading alternative products

Predecessor

Success stories

  • Tough conditions: Installation at the difficult-to-access measuring point Tough conditions: Installation at the difficult-to-access measuring point

    Reliable flow measurement despite difficult conditions

    Schluchseewerk AG wanted to record and optimize the efficiency of its turbines at the pumped storage plant in Wehr. Endress+Hauser offers the optimum solution with its ultrasonic clamp-on flowmeter.

  • Picture of the water reservoir Marbach (Germany) Picture of the water reservoir Marbach (Germany)

    Smart monitoring system for potable water treatment

    With Netilion Network Insights, Oberzent's water masters now see all relevant data points of their water system on a cloud-based dashboard without having to drive to the plants.

  • Wastewater sampling in a shaft Wastewater sampling in a shaft

    Wastewater measurement that works

    Check out how Hofbrauhaus Freising samples wastewater with Promag L 400 in a nearly inaccessible shaft.

  • Picture of Promag W measuring tube with build-up Picture of Promag W measuring tube with build-up

    Build-up monitoring

    A water treatment plant in Germany faced the problem of unexpected downtime due to clogged water wells. With Heartbeat Technology build-up index the customer now monitors iron build-up in his process.
